HIHTL Testing

RBTS Testing Capabilities

A wide variety of testing services are available at RBTS, including those listed, as well as other testing requested by our customers.

  • Pressure Integrity
  • Tensile Strength
  • Vacuum
  • High/Low Temperature/Pressure Cycling
  • Burst Testing – To 30,000 psi
  • Electrical Conductivity
  • Other non-destructive or destructive testing, as required

Examples of additional unique testing performed by RBTS at customer’s request:

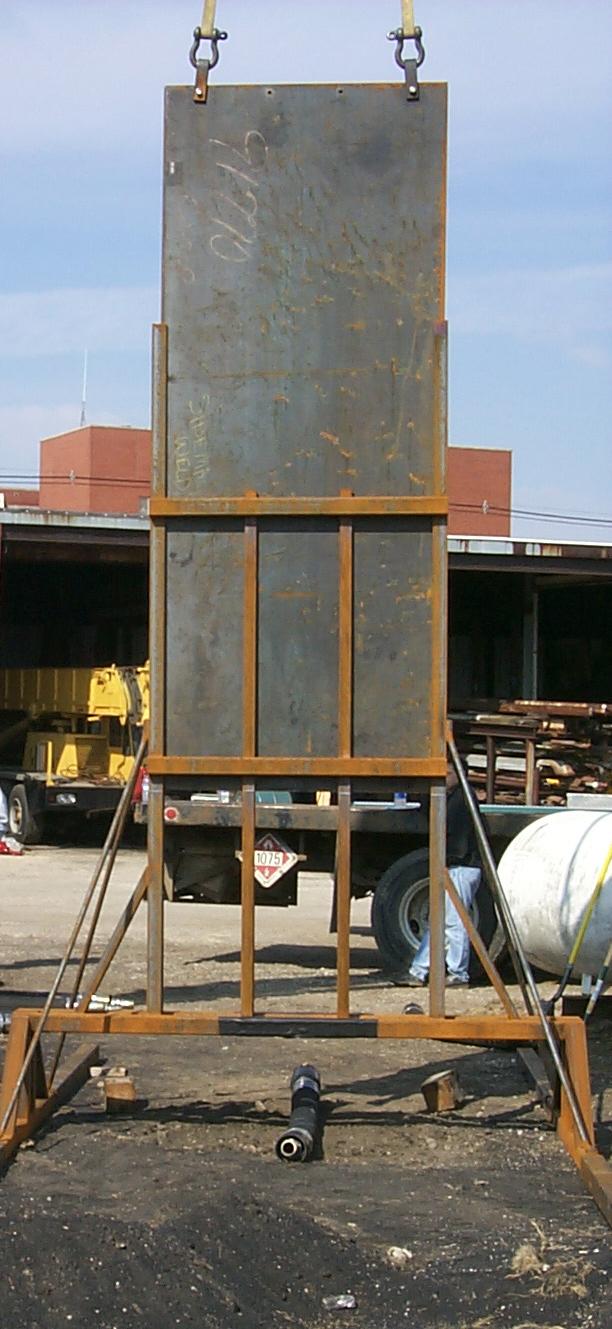

drop_assembly3

Fixture built to test the ability of hose to withstand shearing of 2″ steel plate dropped from 4′.

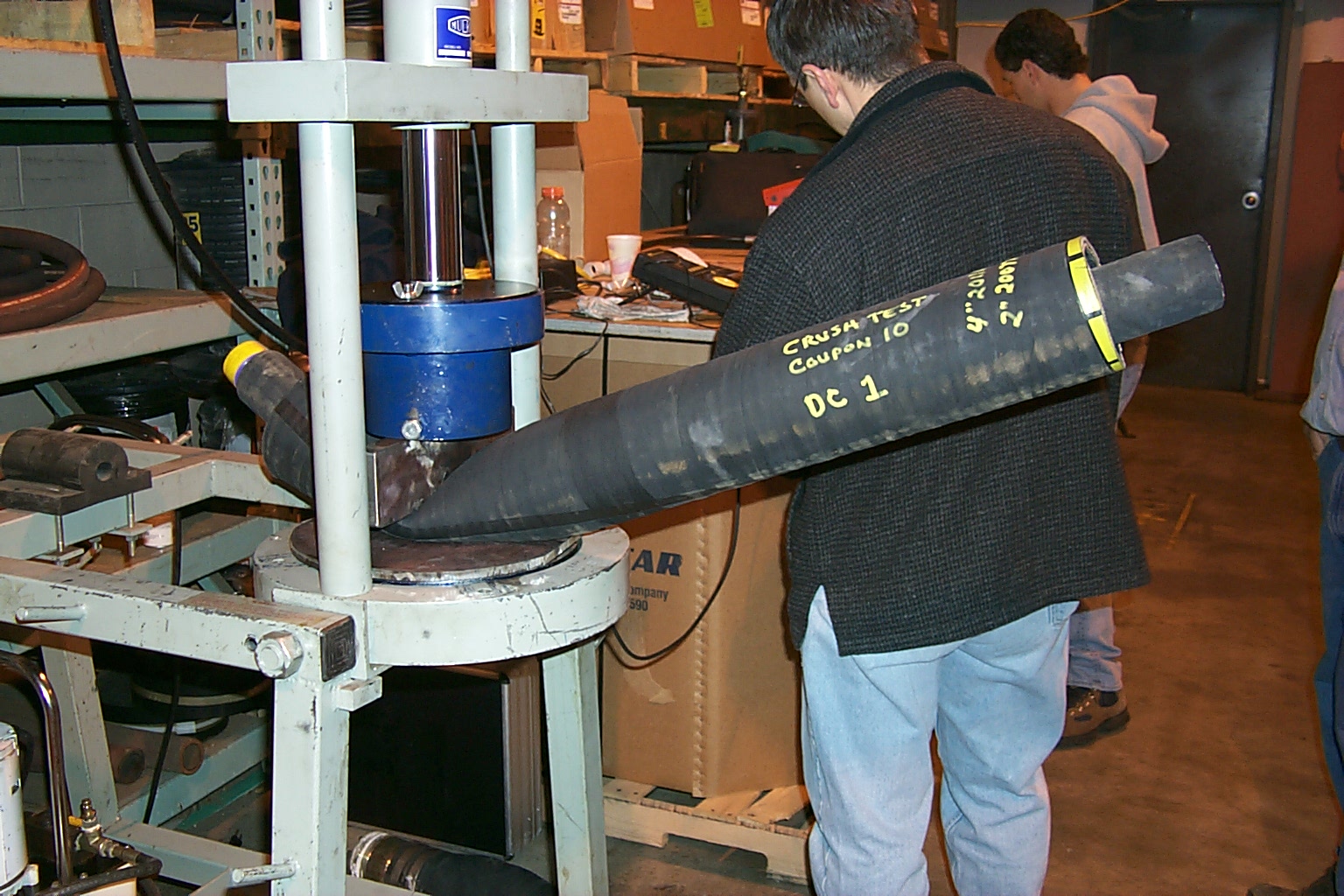

crush_test1

Crush test of 2″ x 4″ HIHTL sample. Coupons subsequently passed “proof pressure testing.”

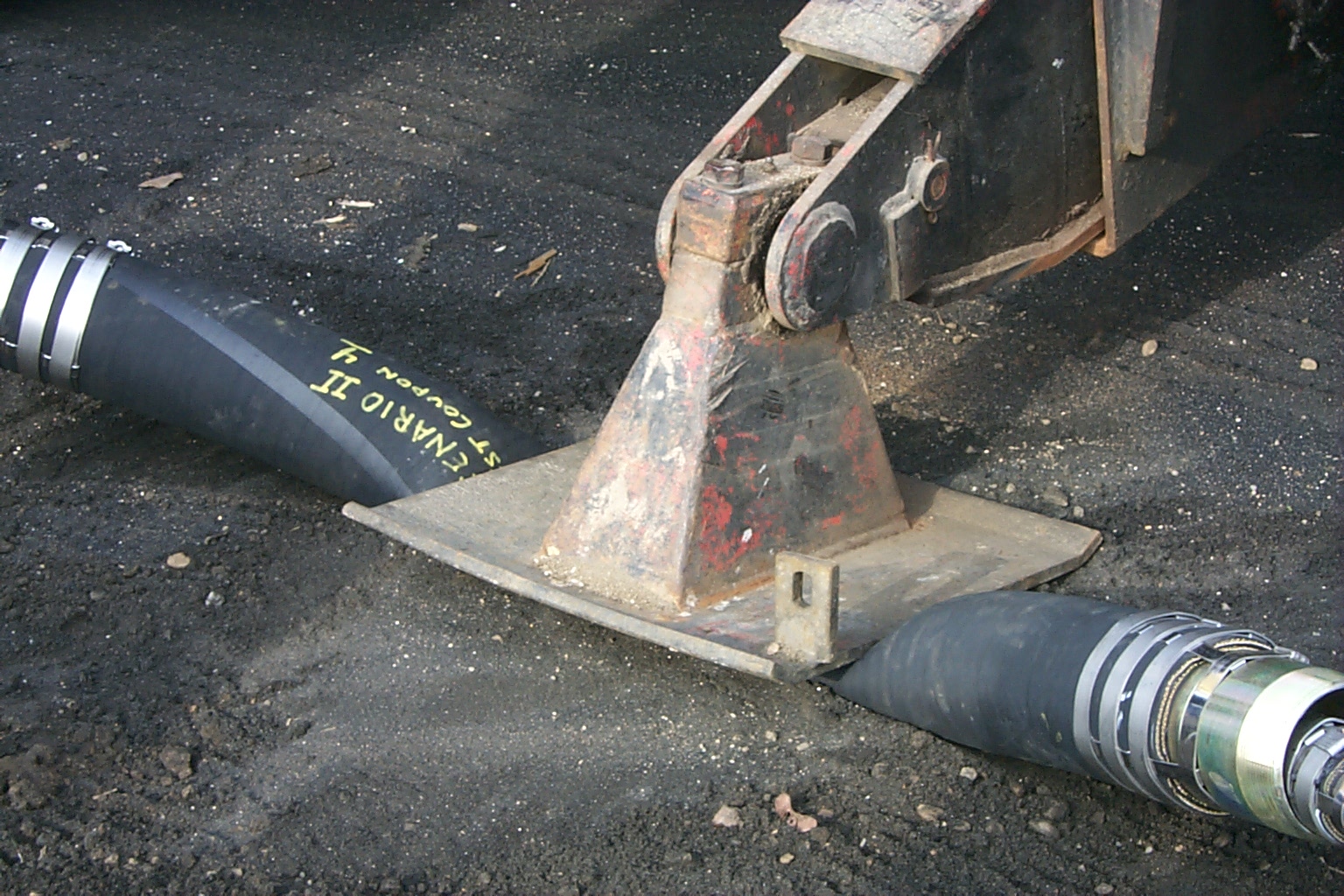

outrigger

Testing of HIHTL sample to withstand being crushed by crane outrigger. Hose samples subsequently passed hydro-test.

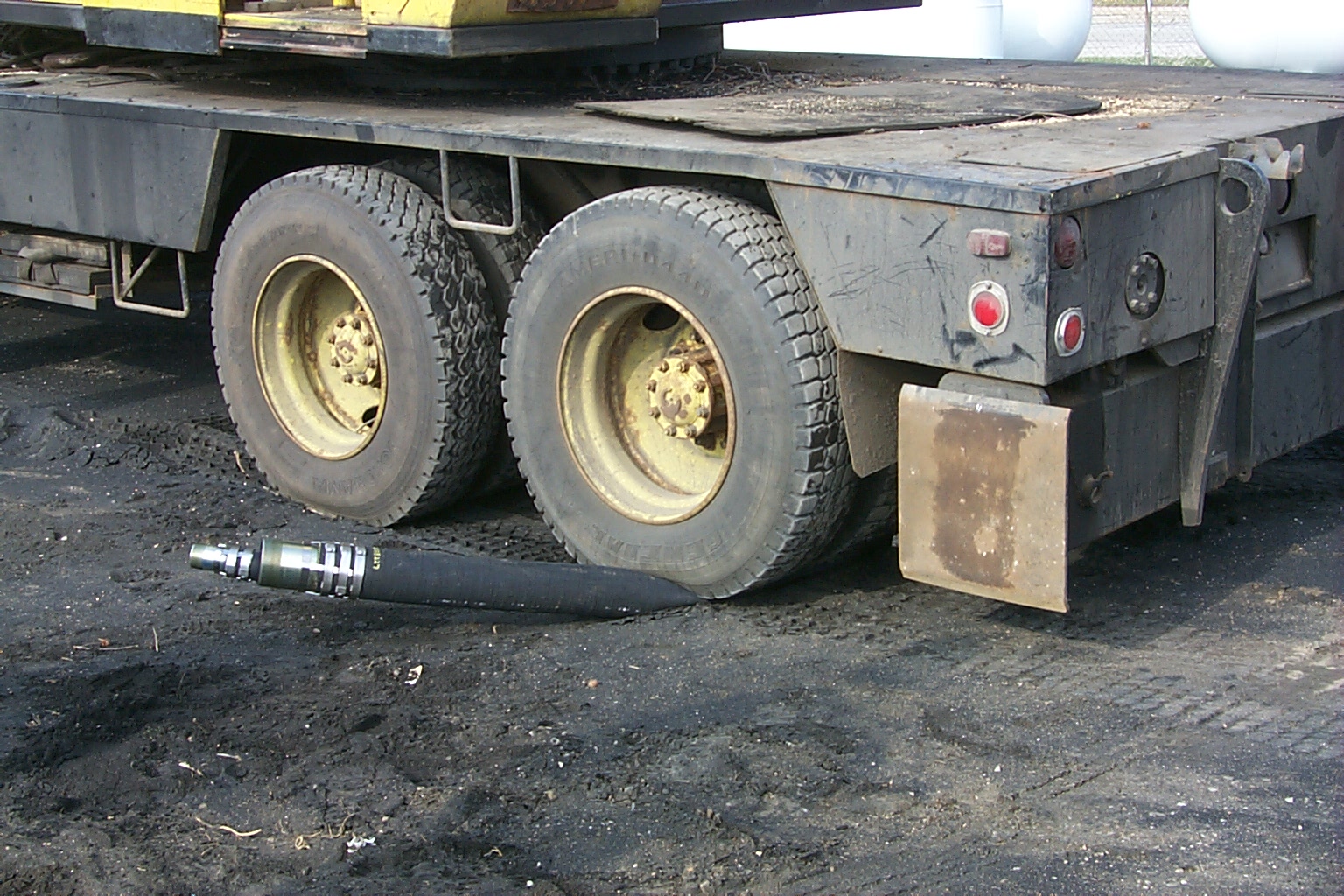

runover

Testing of HIHTL sample to withstand being run over by truck. Hose samples subsequently passed hydro-test.

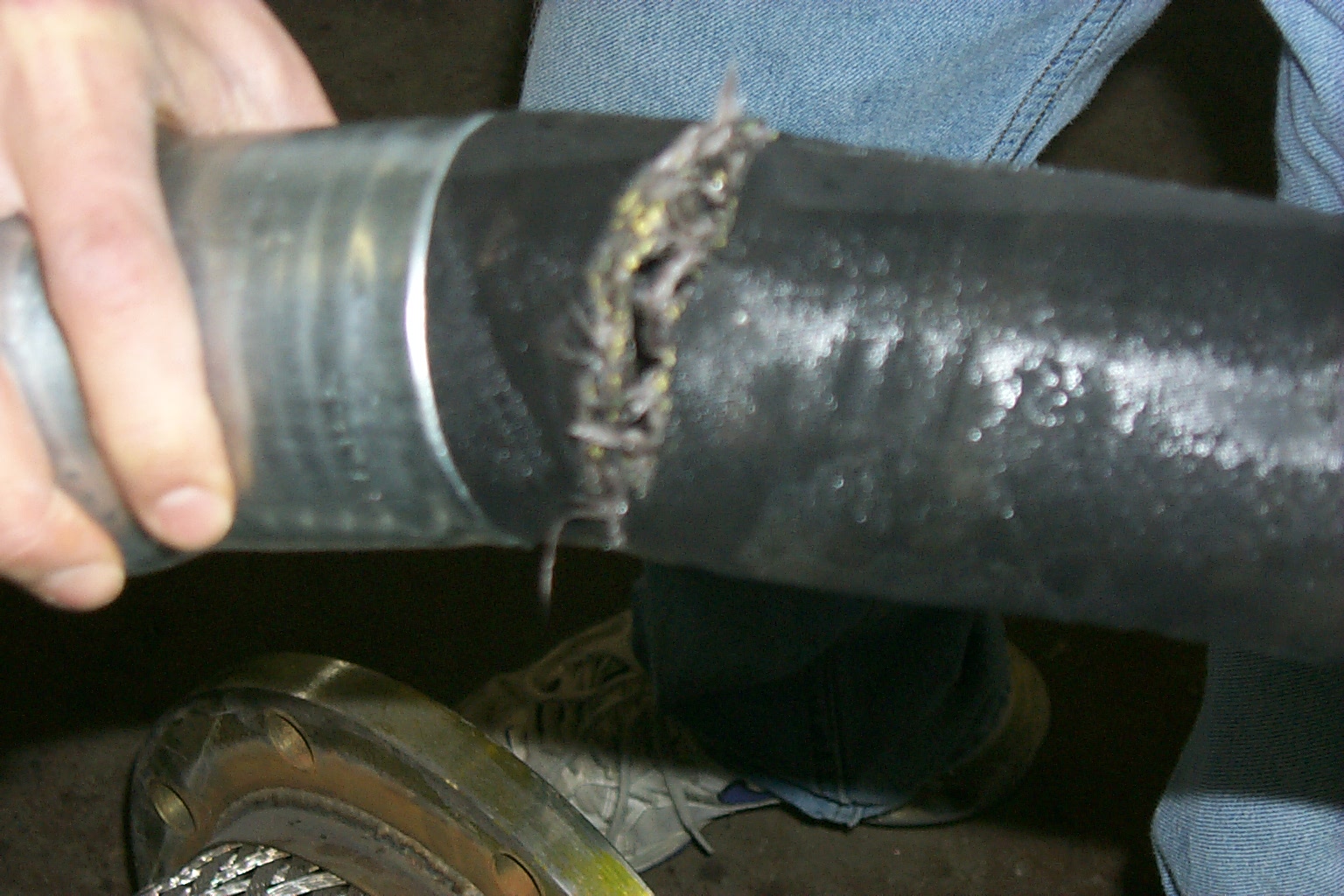

burst_test2

Example of burst test of 2″ Safe-T-Chem hose coupon. Coupon failed at approximatly 3000 psig.
